Modern industrial operations require a robust and reliable power supply. This necessity drives the demand for specialized equipment capable of delivering high-voltage power directly. High-voltage generators from EvoTec Power, engineered specifically for this demanding role, form the critical backbone of large-scale industrial and municipal power systems. Designed for seamless integration and continuous operation where standard power sources are insufficient, EvoTec Power generators ensure performance and reliability under the most challenging conditions.
Core Technical Capabilities of the Unit

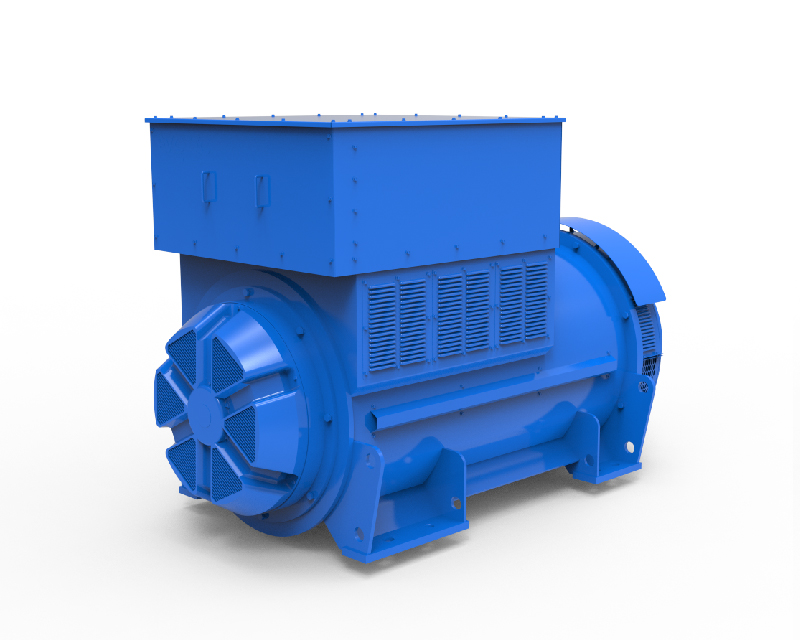

The EVO468 High-Voltage Series from EvoTec Power represents a significant achievement in this sector. This alternator generator is a substantial unit, offering a power range from 1125kVA to 1650kVA. It operates at a high voltage of 3000/15000V and supports both 50/60Hz frequencies with 4/6/8/10 pole configurations. This alternator generator is engineered to be easily assembled into 11kV generator sets for continuous duty. The model exemplifies EvoTec Power’s dedicated research in high-voltage systems, resulting in a high-efficiency product with independent intellectual property rights. The generator hv series is built to provide a top power output of 1500kVA, meeting rigorous industrial demands.
Design Features for Enhanced Longevity
The design philosophy behind this generator hv unit prioritizes durability and operational efficiency. Its architecture includes a superior ventilation and heat dissipation structure, which is crucial for maintaining optimal performance under load. An optional double bearing configuration increases its versatility for various applications. Furthermore, a high protection class ranging from IP21 to IP54, combined with a marine-grade varnish, ensures strong resistance against environmental intrusion. These features collectively work to greatly extend the service life of this alternator generator. The design not only provides excellent energy conversion efficiency but also incorporates an easy maintenance concept, which significantly reduces the total cost of ownership for the end-user.
